This workshop provides the fundamentals of reversing engineering (RE) Windows malware using a hands-on experience with RE tools and techniques. You will be introduced to RE terms and processes, followed by creating a basic x86 assembly program, and reviewing RE tools and malware techniques. The course will conclude by participants performing hands-on malware analysis that consists of Triage, Static, and Dynamic analysis.
You will be setting up your own malware analysis environment. You will learn to install virtual machine software and set up networking.
"is the process of extracting knowledge or design information from anything man-made and re-producing it or re-producing anything based on the extracted information"

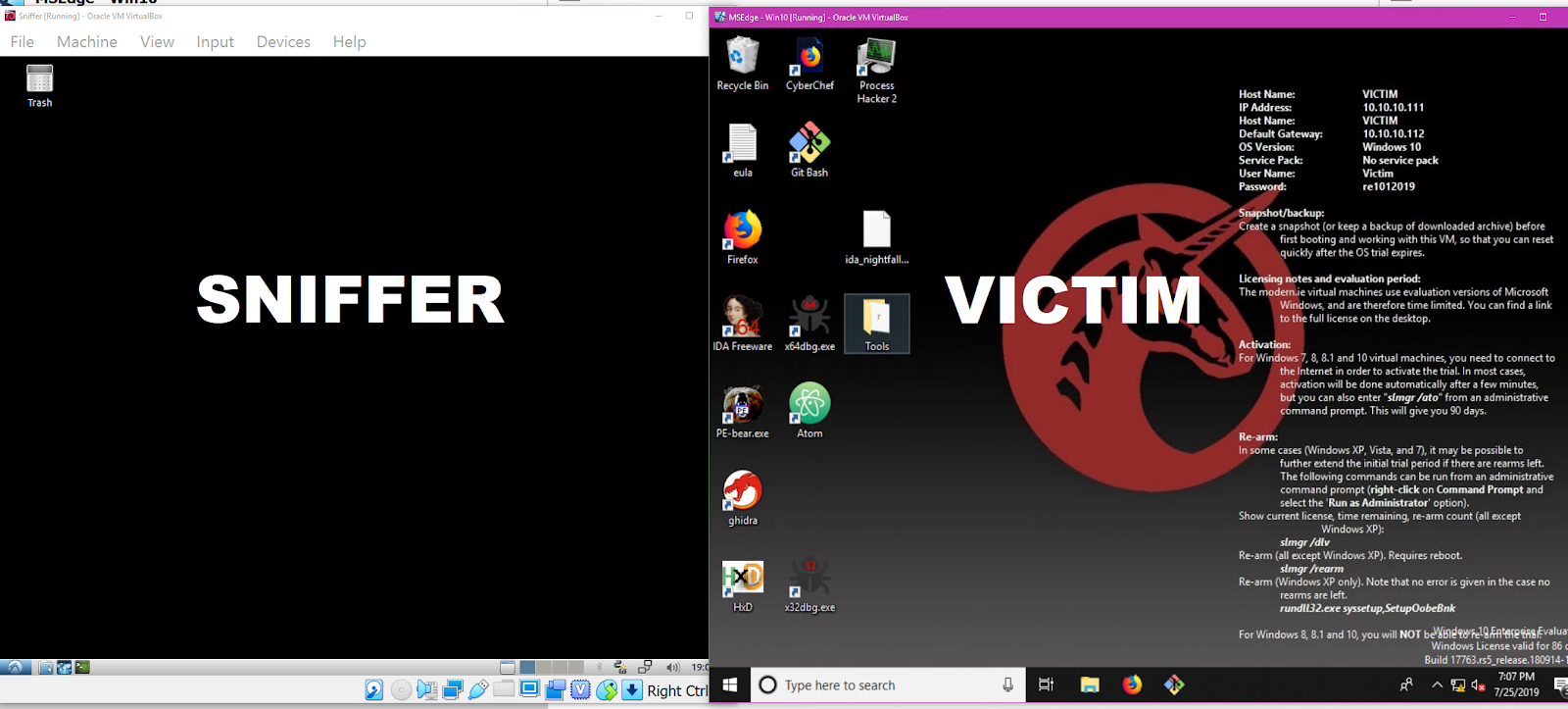

In this section you will be setting up a safe virtual malware analysis environment. The virtual machine (VM) that you will be running the malware on should not have internet access nor network share access to the host system. This VM will be designated as the Victim VM. On the other hand, the Sniffer VM will have a passive role in serving and monitoring the internet traffic of the Victim VM. This connection remains on a closed network within virtualbox.
Click the icons below to download the version of Virtualbox for your OS.
Please use the utility7zip. Unzip the files with 7zip below and in VirtualBox File->Import Appliance targeting the .ova file.
intnetchange it to
ps -ef | grep inetsim
mkdir ~/host; sudo mount -t vboxsf -o uid=$UID,gid=$(id -g) sniffershare ~/host
Typical windows programs are in the Portable Executable (PE) Format. It's portable because it contains information, resources, and references to dynamic-linked libraries (DLL) that allows windows to load and execute the machine code.
In this workshop we will be focusing on user-mode applications.
This diagram shows the relationship of application components for user-mode and kernel-mode.

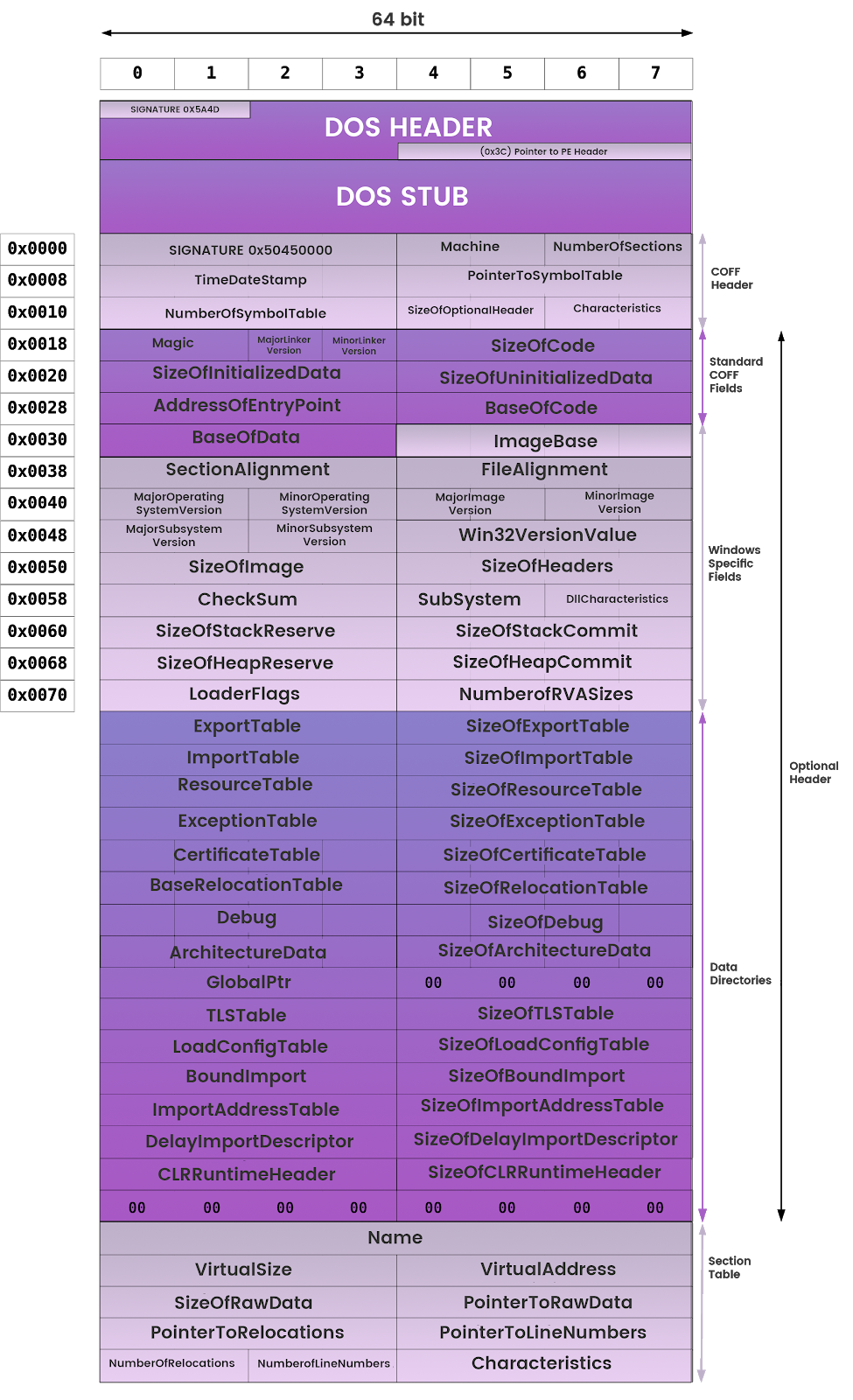

The PE header provides information to operating system on how to map the file into memory. The executable code has designated regions that require a different memory protection (RWX)
Here is a hexcode dump of a PE header we will be working with.
The C programming is a high level language interpreted by the compiler that converts code into machine instructions called assembly language. By using a disassembler tool we can get the assembly language of a compiled C program.
The Intel 8086 and 8088 were the first CPUs to have an instruction set that is now commonly referred to as x86. Intel Architecture 32-bit (IA-32) sometimes also called i386 is the 32-bit version of the x86 instruction set architecture.
The x86 architecture is little-endian, meaning that multi-byte values are written least significant byte first.
How we see it:
| A0 | A1 | A2 | A3 |
Stored as Little Endian
| A3 | A2 | A1 | A0 |
Each Instruction represents opcodes (hex code) that tell the machine what to do next.
Three categories of instructions:
Example below is moving value at 0xaaaaaaaa into ecx.
The EIP register contains the address of the next instruction to be executed.
Stack Segment, Pointer to the stack
Code Segment, Pointer to the code
Data Segment, Pointer to the data
Extra Segment, Pointer to extra data
F Segment, Pointer to more extra data
G Segment, Pointer to still more extra data
Set if the last arithmetic operation carried (addition) or borrowed (subtraction) a bit beyond the size of the register. This is then checked when the operation is followed with an add-with-carry or subtract-with-borrow to deal with values too large for just one register to contain
Set if the number of set bits in the least significant byte is a multiple of 2
Carry of Binary Code Decimal (BCD) numbers arithmetic operations
Set if the result of an operation is Zero (0)
Set if the result of an operation is negative
Set if step by step debugging
Set if interrupts are enabled
Stream direction. If set, string operations will decrement their pointer rather than incrementing it, reading memory backwards
Set if signed arithmetic operations result in a value too large for the register to contain
I/O Privilege Level field (2 bits)
I/O Privilege Level of the current process
Nested Task flag
Controls chaining of interrupts. Set if the current process is linked to the next process
Response to debug exceptions
Set if in 8086 compatibility mode
Set if alignment checking of memory references is done
Virtual Interrupt Flag
Virtual image of IF
Virtual Interrupt Pending flag
Set if an interrupt is pending
Support for CPUID instruction if can be set
Arguments on the Stack
Code that propagates (replicates) across systems with user intervention
Code that self-propagates/replicates across systems without requiring user intervention
Automated process that interacts with other network services
Malware that is often disguised as legitimate software
Malware that holds the victim's data hostage by cryptography or other means
Masks its existence or the existence of other software
Enables a remote attacker to have access to or send commands to a compromised computer
Remote Access Trojan, similar to a backdoor
Steals victims information, passwords, or other personal data
Admin tools or programs that may be used by hackers to attack computer systems and networks. These programs are not generally malicious
Program may deliver a false warning about a computer virus or install a fake AV
Designed to "install" or download some sort of malware
Automatically renders advertisements in order to generate revenue for its author.
Potentially Unwanted Program, sometimes added to a system without the user's knowledge or approval
The malware classes may exhibit one or more of the following techniques.Mitre Att&ck framework provides a great reference for many of these techniques.
Combining the compressed data with decompression code into a single executable
Sample & Link:virustotal
Sample & Link: virustotal
Jump to xref to operand
Jump to address
Depending on your workload, you want to spend the least amount of time trying to determine what the malware is doing and how to get rid of it. Many malware analysts use their own triage analysis, similar to that in the Emergency Room at the hospital.
You will want to quickly narrow down specific information and indicators before moving on to deeper static and dynamic analysis.
This checklist should get you started:
When you receive the malware binary, it's important to ask how the malware got there in the first place.
Questions to ask:
Copy over the Unknown binary file to the Victim VM's Desktop
Open the file in the hex editor HxD
Notice the first 2 bytes are MZ meaning it's a PE Binary
00000000: 4d5a 9000 0300 0000 0400 0000 ffff 0000 MZ.............. 00000010: b800 0000 0000 0000 4000 0000 0000 0000 ........@....... 00000020: 0000 0000 0000 0000 0000 0000 0000 0000 ................ 00000030: 0000 0000 0000 0000 0000 0000 d800 0000 ................ 00000040: 0e1f ba0e 00b4 09cd 21b8 014c cd21 5468 ........!..L.!Th 00000050: 6973 2070 726f 6772 616d 2063 616e 6e6f is program canno 00000060: 7420 6265 2072 756e 2069 6e20 444f 5320 t be run in DOS 00000070: 6d6f 6465 2e0d 0d0a 2400 0000 0000 0000 mode....$....... 00000080: e34b 539a a72a 3dc9 a72a 3dc9 a72a 3dc9 .KS..*=..*=..*=. 00000090: bcb7 a3c9 a62a 3dc9 bcb7 97c9 a12a 3dc9 .....*=......*=.

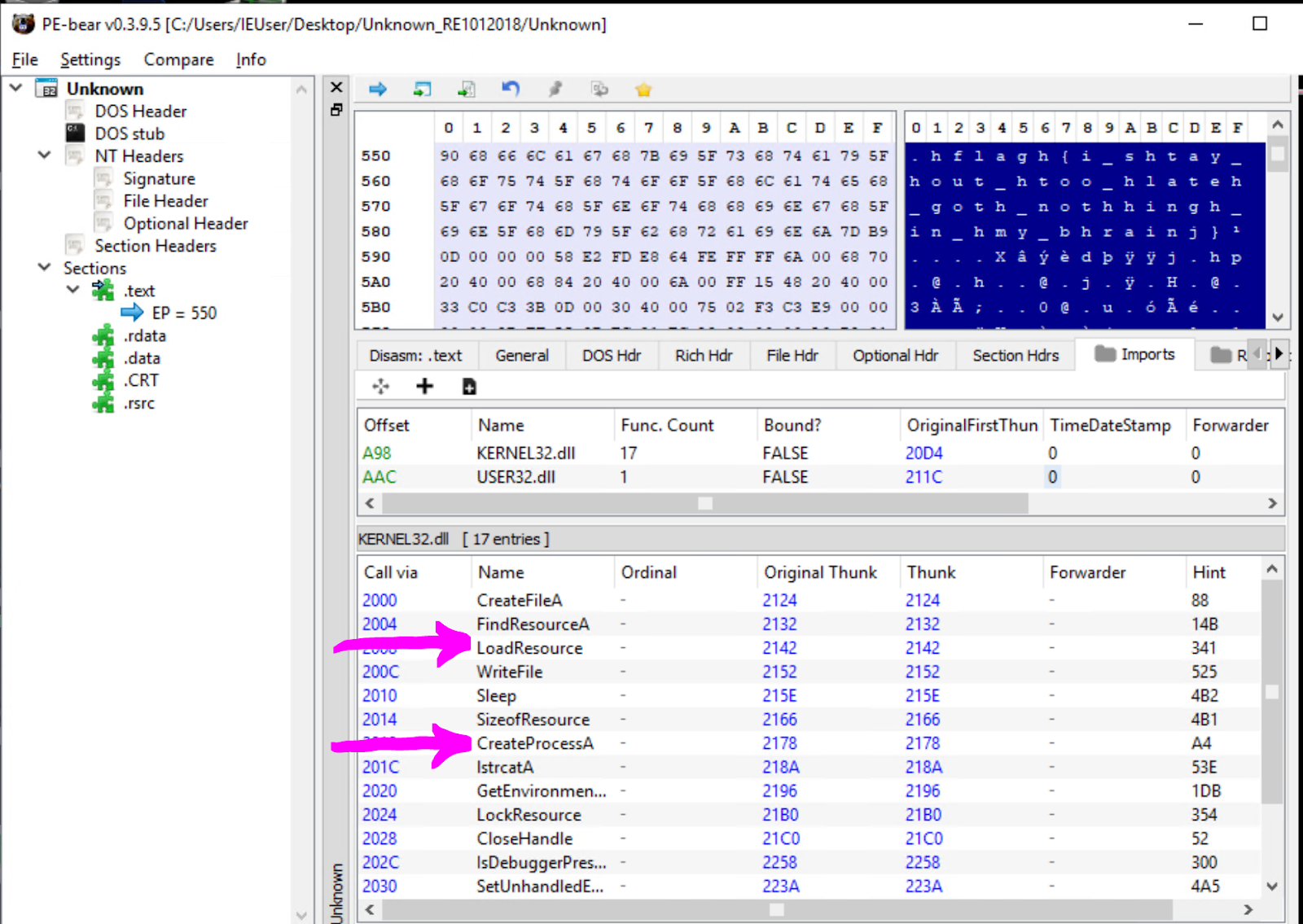

Add the file extension .exe to the Unknown file so that it reads as Unknown.exe. Load the file in PE Bear to check the PE header information.

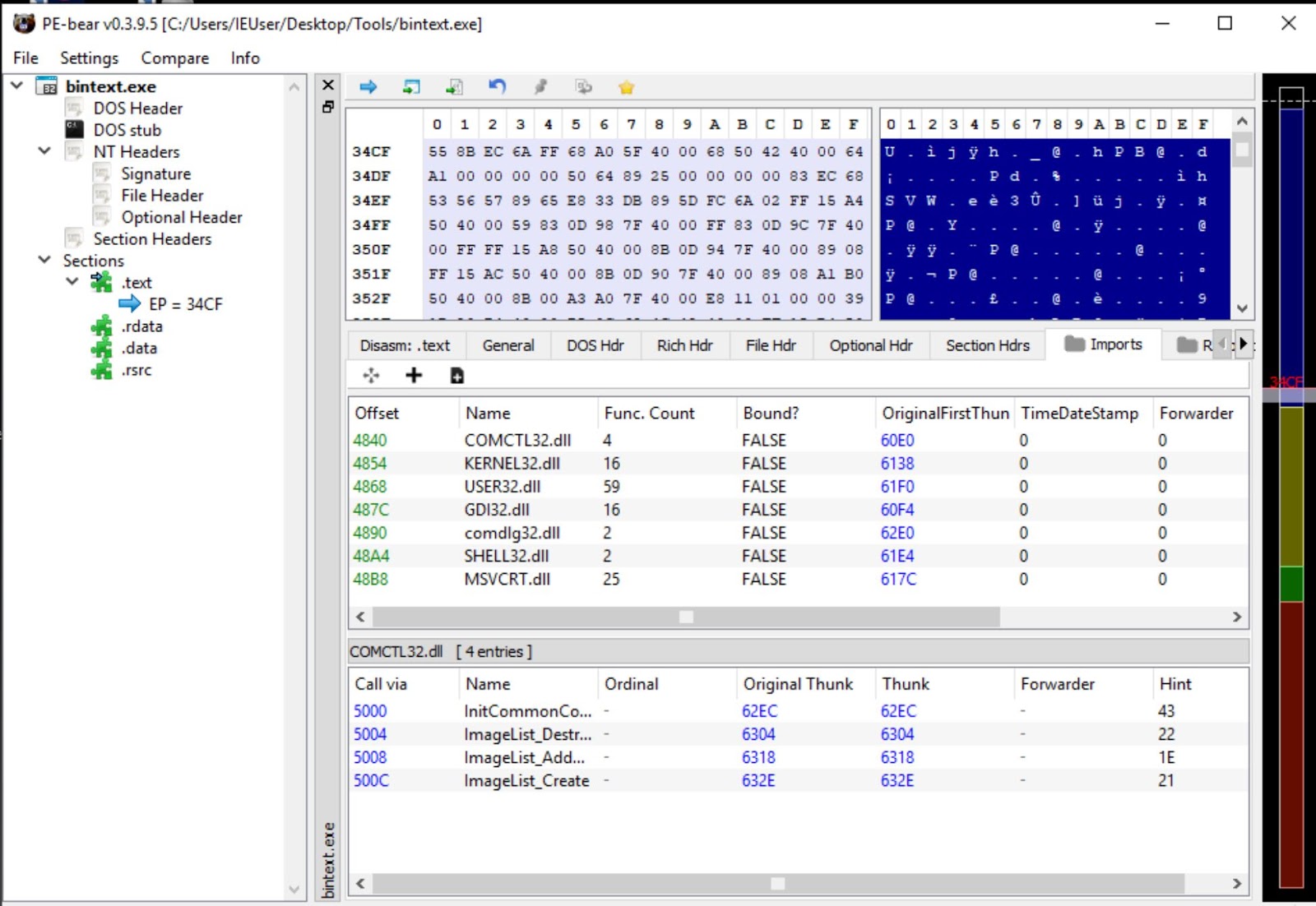

Select the File information in the PE Bear navigation tree to collect the MD5 hash and SHA1 Hash.
Go tovirustotal.com and search based on hash. See if there are any search results.

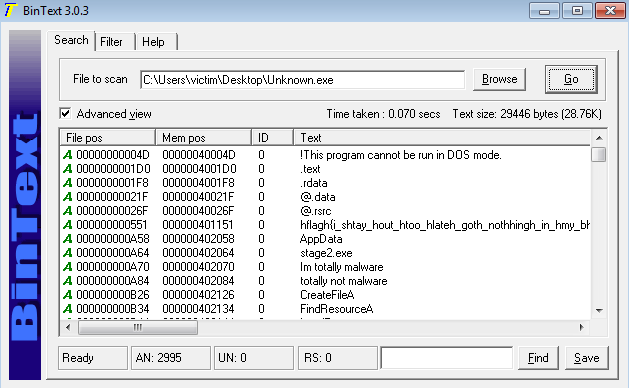

Next open the file in BinText program and note any interesting strings.

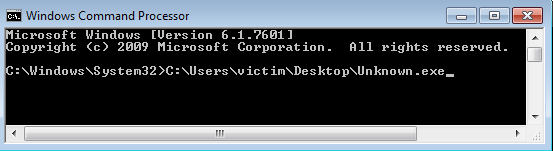

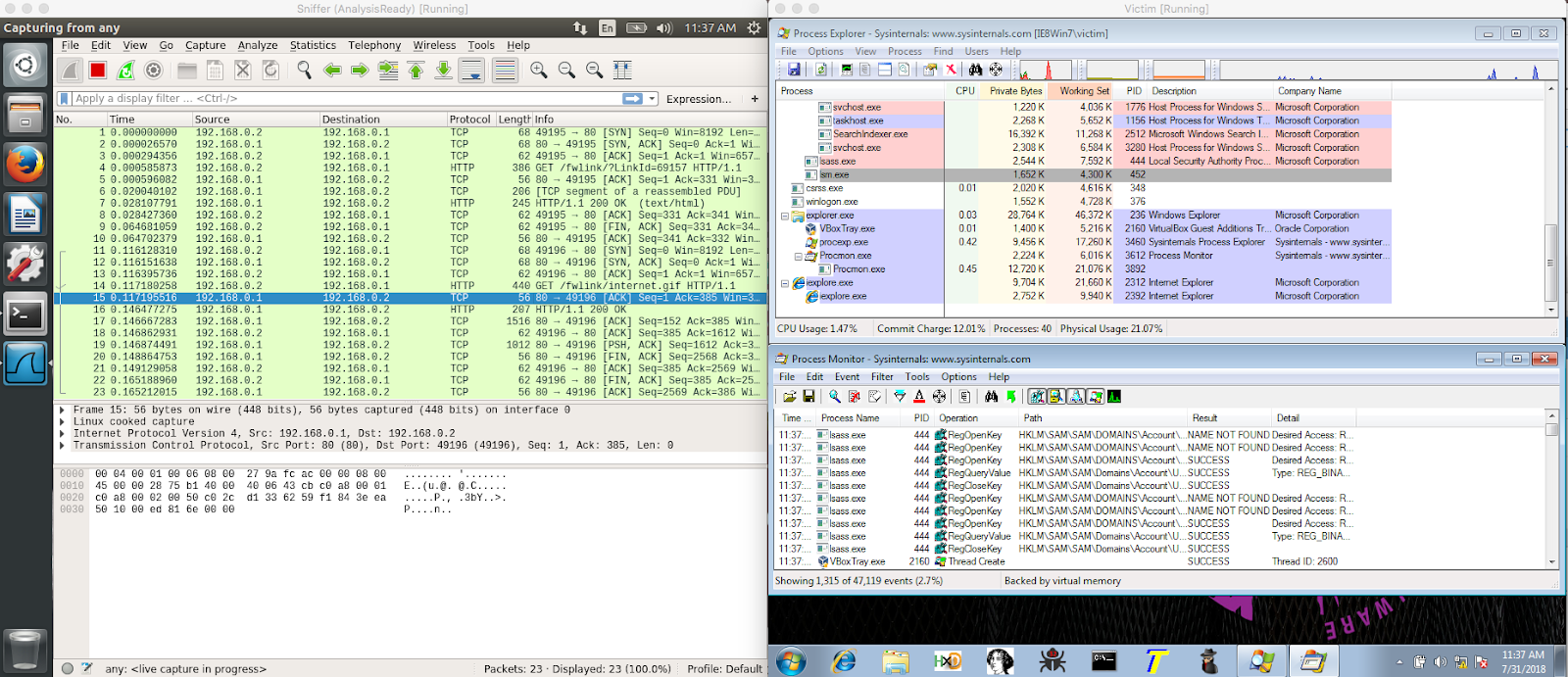

The point of the quick detonation is to capture the filesystem, registry, and connection activity. The VMs are set up in such a way that the Victim VM's internet traffic is captured by the Sniffer VM.
sudo wiresharkto get Wireshark sniffing the traffic from the Victim VM. In the menu select "any" for the interface to monitor. Be sure InetSim is still running, see the fundamentals section on how to start up InetSim.
You should see an interesting popup in the Victim VM

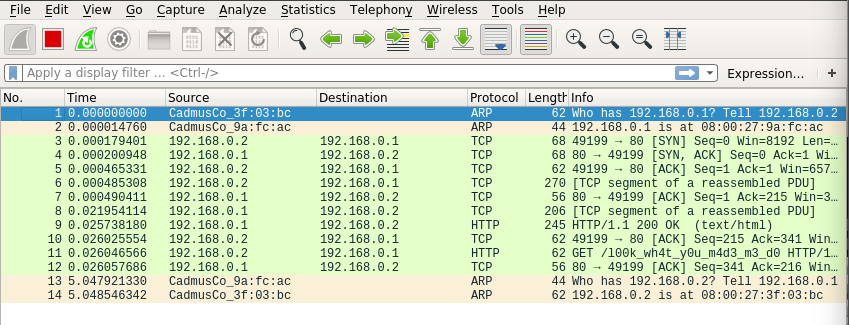

You should see some interesting network activity in Wireshark in the Sniffer VM.
In Wireshark, find the Protocol HTTP where the info contains
Right click and Follow->TCP Stream. It will display the HTTP get request that was sent by the Unknown.exe
Stop the monitoring in procmon.exe File->Capture Events
The filter should show that there was a file created in
Summarize all the interesting details in your notes. You will use these details in the next section
So far the assumptions you can make:
Static analysis is like reading a map for directions on where to go. As you follow through this map you capture notes on what things might look interesting when you actually begin your journey.
This section will teach you how to jump into code in static disassembly then rename and comment on interesting assembly routines that we will debug in the last section.

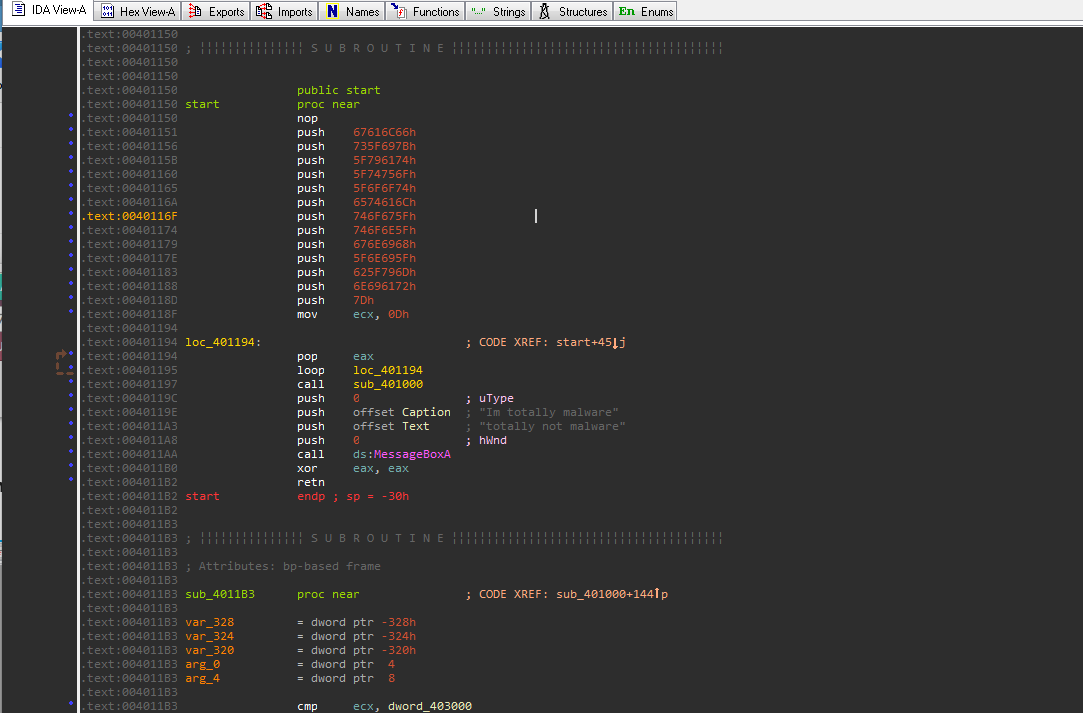

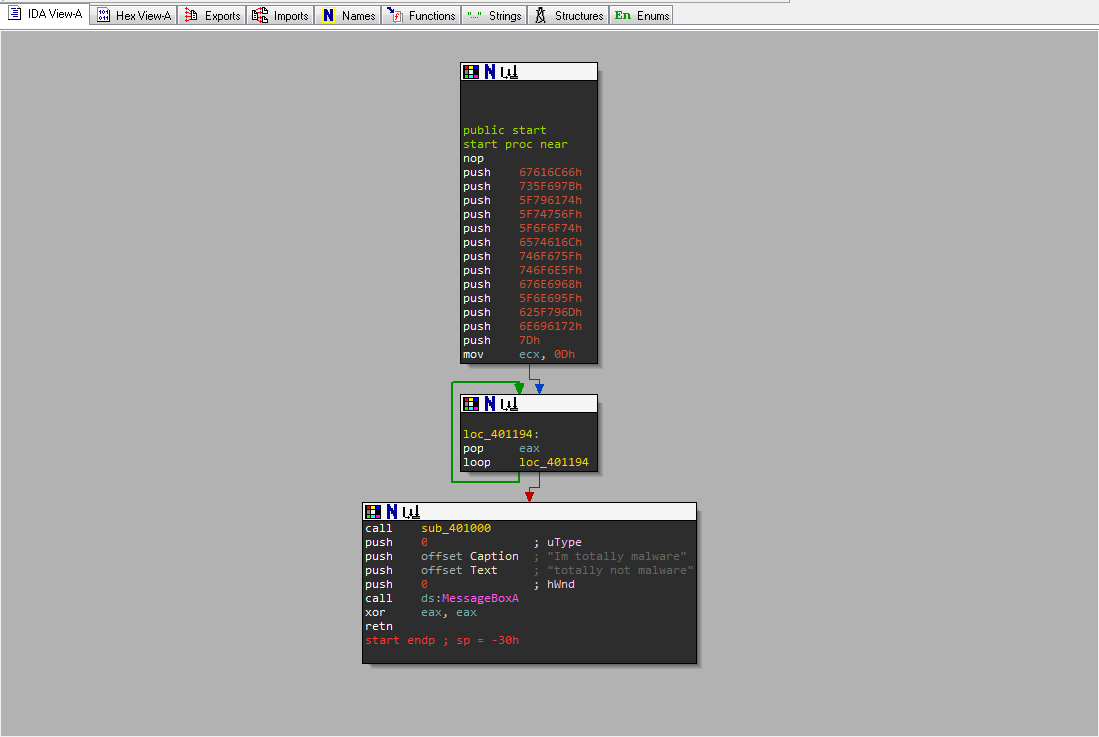

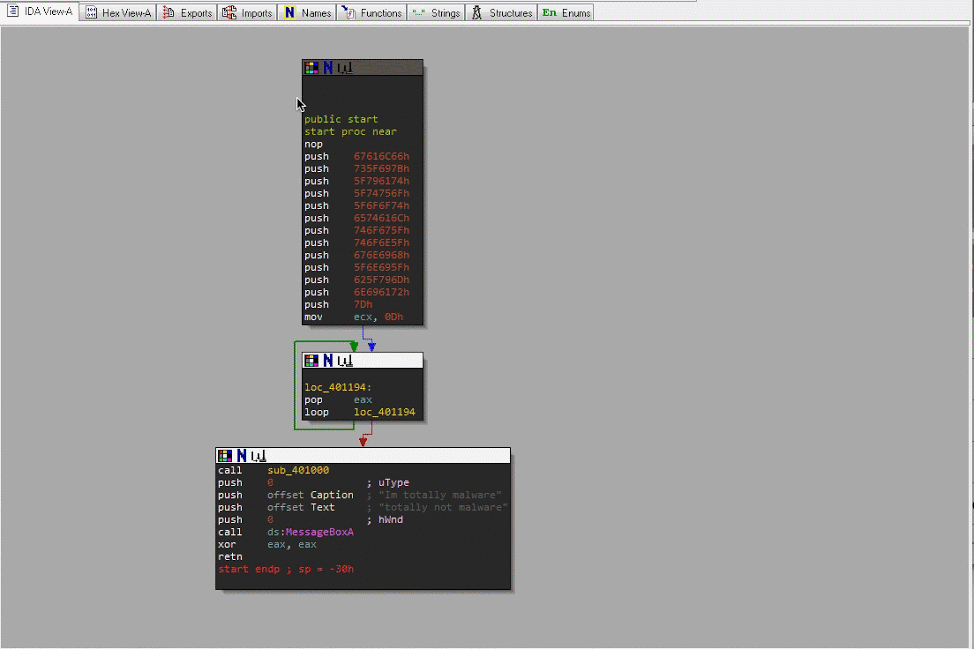

You should see a control flow graph view of the start function. To see the text view, hit your space bar to toggle the views.
Notice that the function is using many push instructions. This is a technique used by malware authors to hide strings on the stack. Remember that values are in little endian format so each Hex value will appear backwards.
67616C66h) and select the R for the readable string option.
galfin ascii text
aStage_exeand hit the X key. This will open a window that will show all of the code locations that reference this string.
sub_401000. This will take you to where the string is referenced at

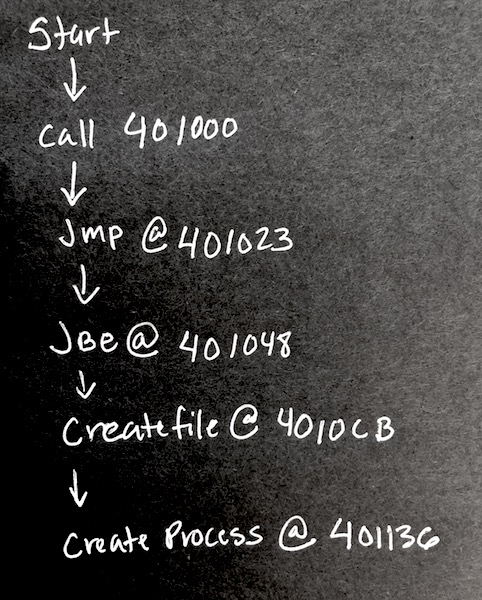

You will need to create record the route from the start function to the current position you are at. To do this you will need to follow the xrefs of the functions backwards until you reach the start function.
loc_40104C. Place cursor on the function name and hit the X key to follow the code which branches to this location (A branch or jump instruction is jbe or jmp).
So it looks like you need to capture when stage2.exe file is created and written. Remember that functions have their arguments pushed onto the stack before the function is called.

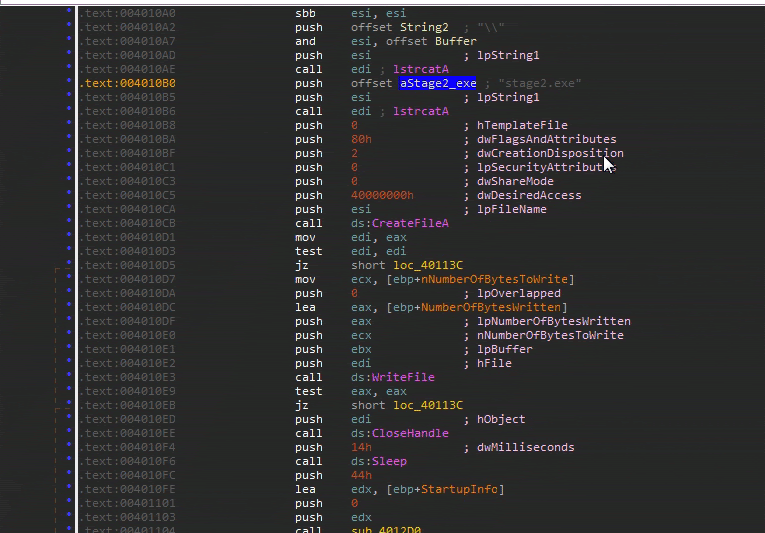

In the excerpt below, the string for stage2.exe is concatenated together with the string referenced by the register esi. Then esi is used as the first argument for
HANDLE CreateFileA( LPCSTR lpFileName, // Arg1 DWORD dwDesiredAccess, // Arg2 DWORD dwShareMode, //Arg3 LPSECURITY_ATTRIBUTES lpSecurityAttributes, //Arg4 DWORD dwCreationDisposition, //Arg5 DWORD dwFlagsAndAttributes, //Arg6 HANDLE hTemplateFile //Arg7 );
.text:004010B0 push offset aStage2_exe ; "stage2.exe" .text:004010B5 push esi ; lpString1 .text:004010B6 call edi ; lstrcatA .text:004010B8 push 0 ; Arg7 hTemplateFile .text:004010BA push 80h ; Arg6 .text:004010BF push 2 ; Arg5 .text:004010C1 push 0 ; Arg4 .text:004010C3 push 0 ; Arg3 dwShareMode .text:004010C5 push 40000000h ; Arg2 dwDesiredAccess .text:004010CA push esi ; Arg1 lpFileName .text:004010CB call ds:CreateFileA
Also notice further down the function, the esi register containing the new string is used as an argument for a call to
CreateProcessA. Remember you saw this function in the executable header imports.
Other interesting API function patterns:
Now you know how to navigate the disassembly forward and backwards to get to interesting routines using control flow instruction (branch, jumps, calls).

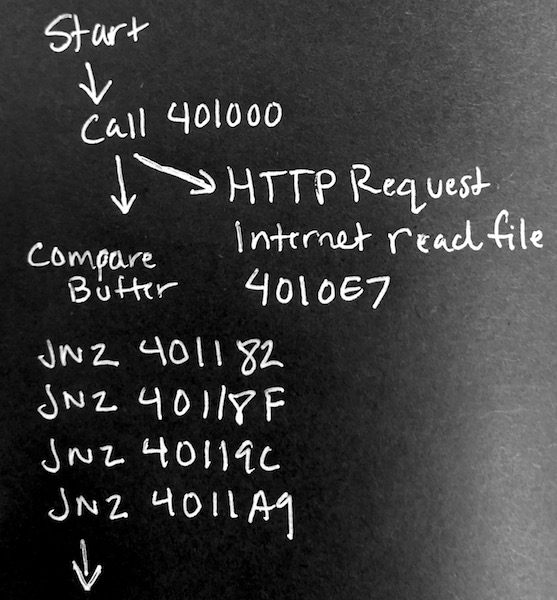

The next step is making a rough path to follow for deeper analysis in the next section.
C:\Users\victim\AppData\Roaming\stage2.exe and open it in IDA to analyze.

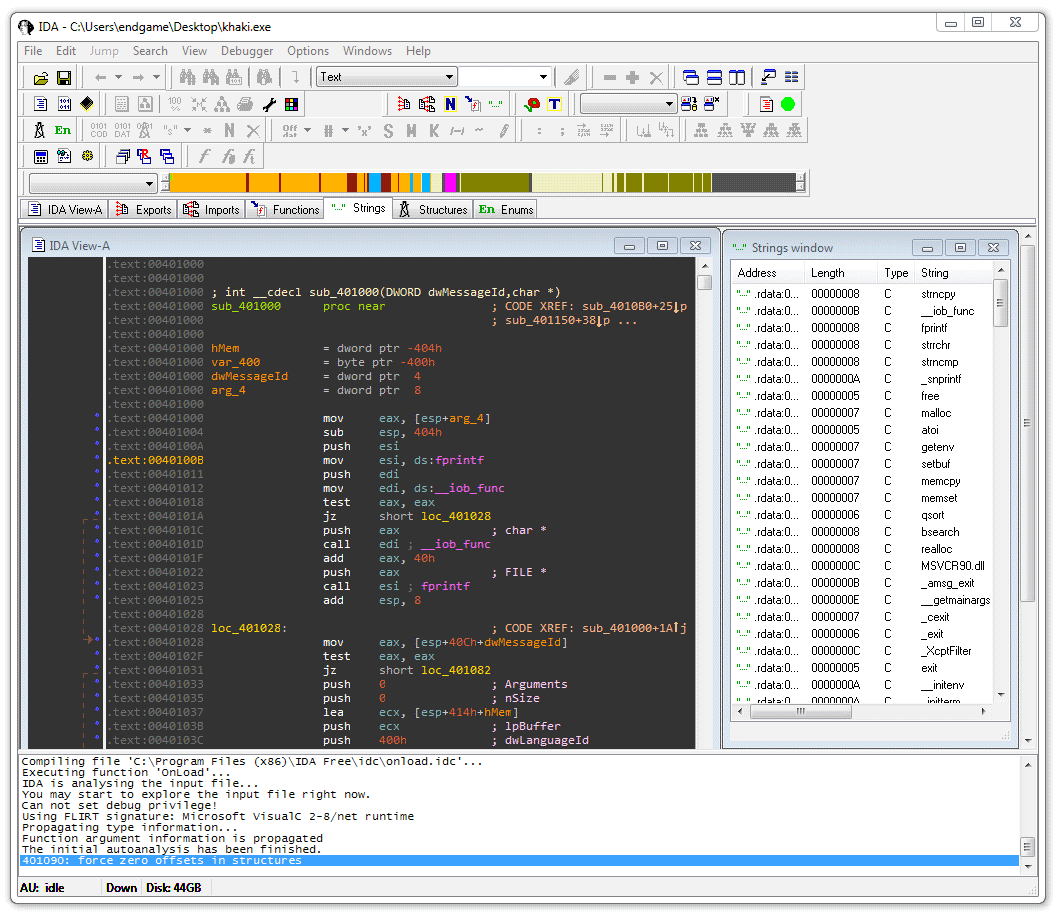

In IDA, go to the strings tab and look for interesting strings. You should see
l00k_wh4t_y0u_m4d3_m3_d0 referenced. Similar to the first executable, follow that string to the code location it's being referenced at
Can you guess what this function is doing?
l00k_wh4t_y0u_m4d3_m3_d0 was used in function sub_401000 where it was doing the HTTP request. However a buffer was an argument to this function. Unlike the instruction
push, lea <reg>, <some address> is another way to add arguments. The register
edi stores the address of the buffer.
The excerpt below shows this buffer being given to
sub_401000. That same buffer is being compared against 6Ch
.text:00401169 lea edi, [ebp-104h] .text:0040116F mov byte ptr [ebp-104h], 0 .text:00401176 call sub_401000 .text:0040117B cmp byte ptr [ebp-104h], 6Ch
So you know that
edi contains the address of the buffer. That buffer is given to InternetReadFile so when the response data from
definitely-not-evil.com/l00k_wh4t_y0u_m4d3_m3_d0 will be placed into the buffer
.text:00401104 push eax ; lpdwNumberOfBytesRead .text:00401105 push 0FEh ; dwNumberOfBytesToRead .text:0040110A push edi ; lpBuffer .text:0040110B push esi ; hFile .text:0040110C mov [ebp+dwNumberOfBytesRead], 0 .text:00401116 call ebx ; InternetReadFile
The resulting buffer will contain bytes that will be compared against
6Ch, 6Dh, 61h, 6Fh
.text:00401176 call sub_401000 .text:0040117B cmp byte ptr [ebp-104h], 6Ch .text:00401182 jnz loc_4012E6 .text:00401188 cmp byte ptr [ebp-103h], 6Dh .text:0040118F jnz loc_4012E6 .text:00401195 cmp byte ptr [ebp-102h], 61h .text:0040119C jnz loc_4012E6 .text:004011A2 cmp byte ptr [ebp-101h], 6Fh .text:004011A9 jnz loc_4012E6 .text:004011AF mov edi, ds:LoadIconA
Here is the pseudo code of the assembly
if (buffer != 6C) goto Exit if (buffer != 6D) goto Exit if (buffer != 61) goto Exit if (buffer != 6F) goto Exit
If you follow the address of the branching jump instruction, it will take you to the exit of the program. But this is not what you want. You will need to bypass these branch statements in order to see what happens after it received the HTTP response.
This is the part of the program that we will need to control from a debugger in the next section.
Dynamic analysis is a deeper analysis of the program to understand hidden functionality not understood statically. The static analysis will serve as a guide for stepping through the program in a debugger.
Open the stage2.exe into the x32dbg.exe (referred as x64dbg) debugger and IDAfree.
Remember use the F2(breakpoint), F7(Step Into), F8(Step Over), F9(Run) keys to navigate through the debugger. If you accidentally run past the end the of the program you can always restart by clicking .
In x32dbg.exe, run to the entry point by pressing the right arrow in the top menu or Debug->Run.

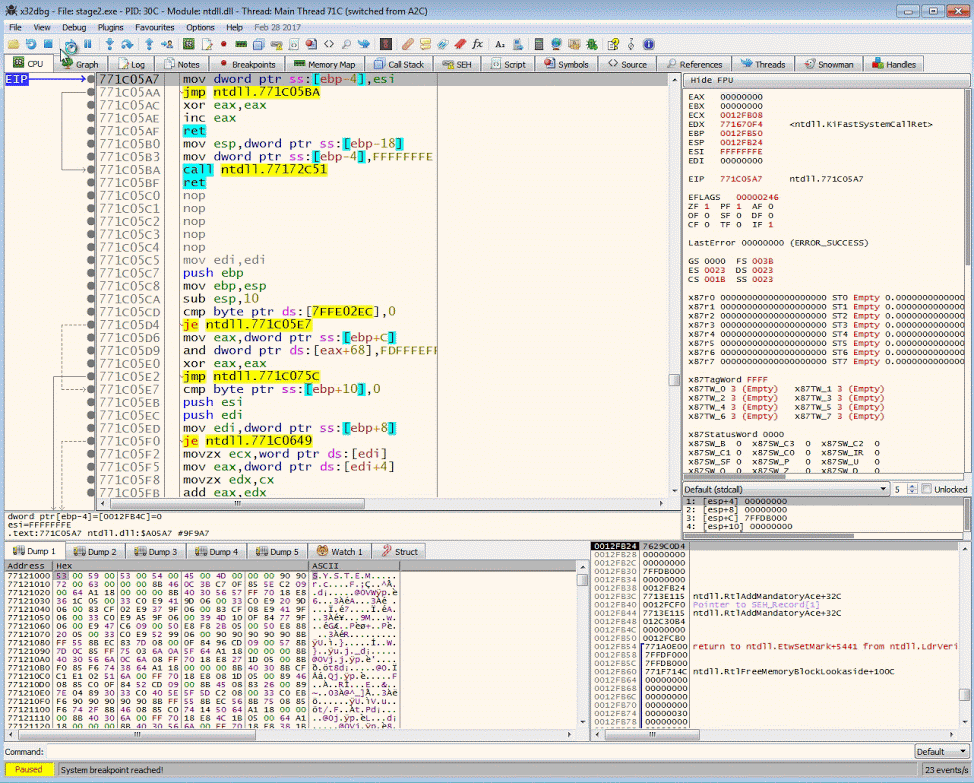

The debugger should land you at the start function

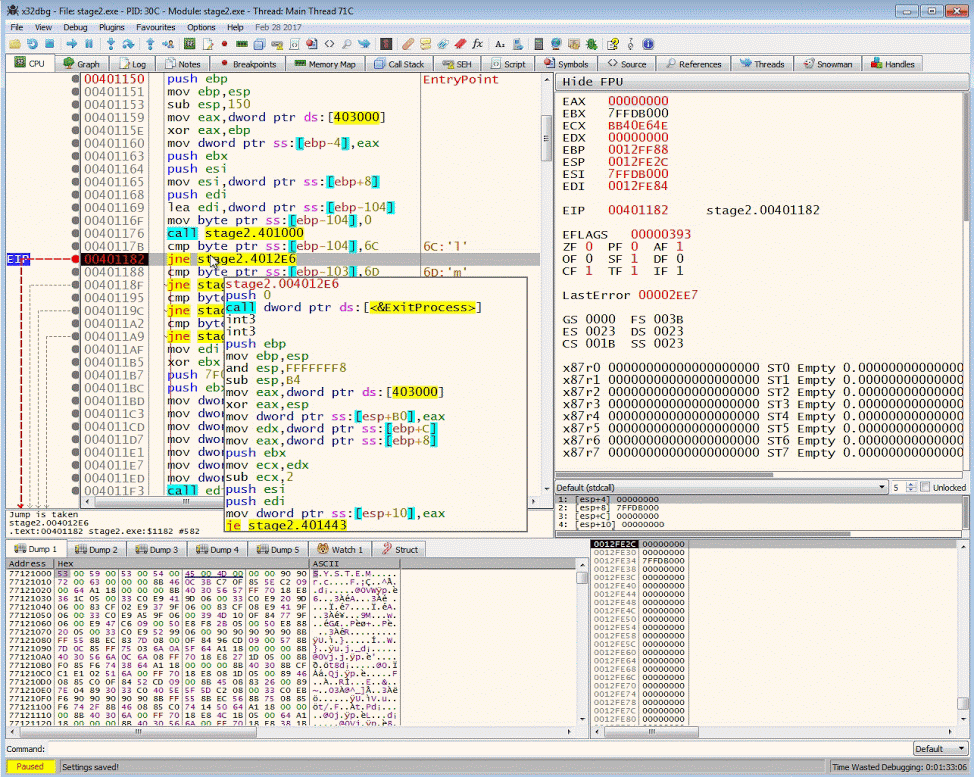

You can set breakpoint by clicking on the dot next to the address in the disassembly view or enter bp <your address in hex> in the command window.
00401182. Hit run.
We want to manipulate the control flow instructions so that we can get to the code after the buffer check. Continue to step to the jne (jump if not equal) instruction. By double clicking the ZF flag we can manipulate the result 1 to 0.
By knowing what the executable is expecting, you will be able to create a fake server that send the information it's looking for. Many RATs (Remote Access Trojans) and bots rely on specific responses in order to perform their duties. By reversing them, you can recreate the response data.
Once you have bypassed those 4 branch jump instructions, go ahead and run the rest of the program to collect the last Flag.
As a malware analyst, it's your job to summarize the functionality and relationships of the binaries.
Here is a brief summary of what is happening.
definitely-not-evil.com/l00k_wh4t_y0u_m4d3_m3_d0and wait to see lmao as the response
